Quickstart

Swap, pay, and transact across supported chains with the Relay API. In this walkthrough, you’ll bridge ETH from Base to Arbitrum: get a quote, execute the returned steps, and track the result. Follow this 5-step flow to integrate Relay into your application:

Configure

To see how fast and simple Relay makes transacting cross-chain, let’s bridge real assets between inexpensive L2s—Base and Arbitrum.Prerequisites:

Base URL: https://api.relay.link
Environment: Node.js installed
Wallet: An EOA with a small amount of ETH (~$2.00 USD equivalent) on Base

API key Provisioning

Create an API key in the Relay Dashboard.
See API keys and Rate Limits for usage and limits.

Chain Configuration

For chain metadata we recommend querying the chains API in your application. This will return some valuable information about the chain, we’ve provided a sample below:

{
  "chains": [{
      "id":10,
      "name":"optimism",
      "displayName":"Optimism",
      "httpRpcUrl":"https://optimism.publicnode.com",
      "wsRpcUrl":"wss://optimism.publicnode.com",
      "explorerUrl":"https://optimistic.etherscan.io",
      "explorerName":"Optimism Etherscan",
      "depositEnabled":true,
      "tokenSupport":"All",
      "disabled":false,
      "partialDisableLimit":0,
      "blockProductionLagging":false,
      "currency":{
          "id":"eth",
          "symbol":"ETH",
          "name":"Ether",
          "address":"0x0000000000000000000000000000000000000000",
          "decimals":18,
          "supportsBridging":true
      },
      "withdrawalFee":1,
      "depositFee":0,
      "surgeEnabled":false,
      "featuredTokens":[
          {
            "id":"eth",
            "symbol":"ETH",
            "name":"Ether",
            "address":"0x0000000000000000000000000000000000000000",
            "decimals":18,
            "supportsBridging":true,
            "metadata":{
                "logoURI":"https://assets.relay.link/icons/1/light.png"
            }
          }
      ],
      "erc20Currencies":[
          {
            "id":"sipher",
            "symbol":"SIPHER",
            "name":"Sipher",
            "address":"0xb94944669f7967e16588e55ac41be0d5ef399dcd",
            "decimals":18,
            "supportsBridging":true,
            "withdrawalFee":1,
            "depositFee":0,
            "surgeEnabled":false
          }
      ],
      "solverCurrencies":[
        {
          "id":"sipher",
          "symbol":"SIPHER",
          "name":"Sipher",
          "address":"0xb94944669f7967e16588e55ac41be0d5ef399dcd",
          "decimals":18
        },
      ],
      "iconUrl":"https://assets.relay.link/icons/10/light.png",
      "contracts":{
        "multicall3":"0xca11bde05977b3631167028862be2a173976ca11",
        "multicaller":"0x0000000000002bdbf1bf3279983603ec279cc6df",
        "onlyOwnerMulticaller":"0xb90ed4c123843cbfd66b11411ee7694ef37e6e72",
        "relayReceiver":"0xa5f565650890fba1824ee0f21ebbbf660a179934",
        "erc20Router":"0xf5042e6ffac5a625d4e7848e0b01373d8eb9e222",
        "approvalProxy":"0xbbbfd134e9b44bfb5123898ba36b01de7ab93d98",
        "v3":{
          "erc20Router":"0xb92fe925dc43a0ecde6c8b1a2709c170ec4fff4f",
          "approvalProxy":"0xccc88a9d1b4ed6b0eaba998850414b24f1c315be"
        }
      },
      "vmType":"evm",
      "baseChainId":1,
      "solverAddresses":[
          "0xf70da97812cb96acdf810712aa562db8dfa3dbef"
      ],
      "tags":[],
      "protocol":{
          "v2":{
            "chainId":"optimism",
            "depository":"0x4cd00e387622c35bddb9b4c962c136462338bc31"
          }
      }
  }]
}

curl -X GET "https://api.relay.link/chains"

The endpoint exposes a vast amount of chain metadata but the important things to note are:

vmType: This is the type of virtual machine that the chain uses (SVM, EVM, BVM, etc).
id: This is the chain id of the chain. Some chains like Bitcoin/Solana/Tron have a custom id that the Relay team chose upon deployment.
disabled: This is a boolean that indicates if the chain is disabled. When incidents arise we may disable a chain to prevent users from interacting with it.
blockProductionLagging: This boolean indicates if the chain is lagging in block production. You can use this to let your users know about degraded Relay performance in real time.

Quote

Every action in Relay starts with a Quote.The quote endpoint handles all of your use cases, whether it’s a bridge, swap, or cross-chain call. It calculates fees, finds the best route, and generates the transaction data.

Request

As an example, let’s consider the scenario of bridging 0.0001 ETH from Base (Chain ID 8453) to Arbitrum One (Chain ID 42161):
Note: the requestId will be unique to every request.

curl -X POST "https://api.relay.link/quote/v2" \
-H "Content-Type: application/json" \
-d '{
  "user": "YOUR_WALLET_ADDRESS",
  "originChainId": 8453,
  "destinationChainId": 42161,
  "originCurrency": "0x0000000000000000000000000000000000000000",
  "destinationCurrency": "0x0000000000000000000000000000000000000000",
  "amount": "100000000000000",
  "tradeType": "EXACT_INPUT"
}'

{
  "steps": [
    {
      "id": "deposit",
      "action": "Confirm transaction in your wallet",
      "description": "Depositing funds to the depository contract",
      "kind": "transaction",
      "requestId": "0x8a9b3c...",
      "items": [
        {
          "status": "incomplete",
          "data": {
            "from": "YOUR_WALLET_ADDRESS",
            "to": "0xf70da97812cb96acdf810712aa562db8dfa3dbef",
            "data": "0x00fad611...",
            "value": "100000000000000",
            "chainId": 8453,
            "gas": "150000",
            "maxFeePerGas": "100000000",
            "maxPriorityFeePerGas": "100000000"
          },
          "check": {
            "endpoint": "/intents/status?requestId=0x8a9b3c...",
            "method": "GET"
          }
        }
      ],
      "depositAddress": ""
    }
  ],
  # ...
  "fees": {
    "gas": {
      "amount": "21000",
      "currency": {
        "chainId": 8453,
        "address": "0x0000000000000000000000000000000000000000",
        "symbol": "ETH",
        "name": "Ether",
        "decimals": 18
      },
      "amountUsd": "0.01"
    },
    "relayer": {
      "amount": "5000000000000",
      "currency": {
        "chainId": 8453,
        "address": "0x0000000000000000000000000000000000000000",
        "symbol": "ETH",
        "name": "Ether",
        "decimals": 18
      },
      "amountUsd": "0.02"
    }
  },
  "details": {
    "operation": "bridge",
    "sender": "YOUR_WALLET_ADDRESS",
    "recipient": "YOUR_WALLET_ADDRESS",
    "timeEstimate": 15,
    "currencyIn": {
      "amount": "100000000000000",
      "currency": {
        "chainId": 8453,
        "address": "0x0000000000000000000000000000000000000000",
        "symbol": "ETH",
        "decimals": 18
      }
    },
    "currencyOut": {
      "amount": "95000000000000",
      "currency": {
        "chainId": 42161,
        "address": "0x0000000000000000000000000000000000000000",
        "symbol": "ETH",
        "decimals": 18
      }
    },
    "totalImpact": {
      "usd": "-0.02",
      "percent": "-0.50"
    },
    "rate": "0.95"
  }
}

Execute

The quote endpoint returns a steps array. Think of this as a recipe your application must follow. You need to iterate through these steps and prompt the user to sign or submit them.

Deep Dive

For the full logic on parsing steps, see Understanding Step Execution.

The Logic

For a simple ETH bridge, the steps array contains a single transaction item. To execute it:

Check the Step Kind: Identify if the step is a transaction (submit to chain) or a signature (sign off-chain).
Execute: For transactions, submit the provided data, to, value, and chainId using the user’s wallet. For signatures, follow the signatureKind provided in the step item to sign the message.

The Script (Node.js / Viem example)

Copy the script below to execute the transaction returned by the Quote in Step 2. You’ll need to add the wallet connection logic using your preferred provider.

// npm install viem
import { createWalletClient, http } from 'viem';
import { privateKeyToAccount } from 'viem/accounts';
import { base } from 'viem/chains';

// 1. Setup Wallet (Base)
//Initialize your wallet using a provider or your preferred method
const account = {}
const client = createWalletClient({
  account,
  chain: base,
  transport: http()
});

// 2. The Quote from Step 2 (Paste JSON response)
const quote = { /* PASTE_FULL_JSON_RESPONSE_HERE */ };

async function execute() {
  console.log("🚀 Starting Execution...");

  // Iterate through steps (usually just 1 for ETH bridge)
  for (const step of quote.steps) {
    //Although there is an array of items, you can safely select the first item
    //as there is just one returned
    const item = step.items[0]
    if (step.kind === 'transaction') {
      console.log(`Submitting Transaction...`);

      // 3. Send Transaction
      const hash = await client.sendTransaction({
        to: item.data.to,
        data: item.data.data,
        value: BigInt(item.data.value),
        chain: base
      });

      //4. Optional but you may want to wait for the transaction receipt
      //to ensure that the origin transaction was successfully submitted.

      console.log(`✅ Bridge Initiated: ${hash}`);
      console.log(`requestId: ${step.requestId}`); // Save this for Step 4!
    }
  }
}

execute();

Monitor

Once the deposit is indexed, a solver prepares and submits the destination-chain fill. The platform reports progress through the status API.Use the status endpoint with the requestId located inside each step object in your quote response to track status and confirm success. You can also use the check.endpoint property inside the step item object as the endpoint for checking the status of the request.
Note: Replace with the requestId returned in your quote

curl "https://api.relay.link/intents/status/v3?requestId=0x20538510fd9eab7a90c3e54418f8f477bfef24d83c11955a8ca835e6154b59d3"

{
  "status": "success",
  "inTxHashes": [
    "0x9421772820b92c239162341a17994b4ad8706c974af2ebf88084a1b3b614d328"
  ],
  "txHashes": [
    "0xef2a71eb2ddd952b31f7b552e133d3af048e4be30a568f2bea54a36d8f3b12cd"
  ],
  "updatedAt": 1767385462193,
  "originChainId": 8453,
  "destinationChainId": 56
}

Deposit-address quotes (useDepositAddress: true) are the exception. The fill can run under a new requestId, for example when the deposit differs from the quote or the address is reused. When that happens, the quoted requestId never reaches success, and outside Bitcoin it stays waiting. Track those orders by depositAddress with Get Requests. See Tracking Transactions.

Poll this endpoint once per second. To avoid polling entirely, configure a webhook in the Relay Dashboard to push status updates to your backend, or subscribe to Relay’s websocket server for a real-time status stream.

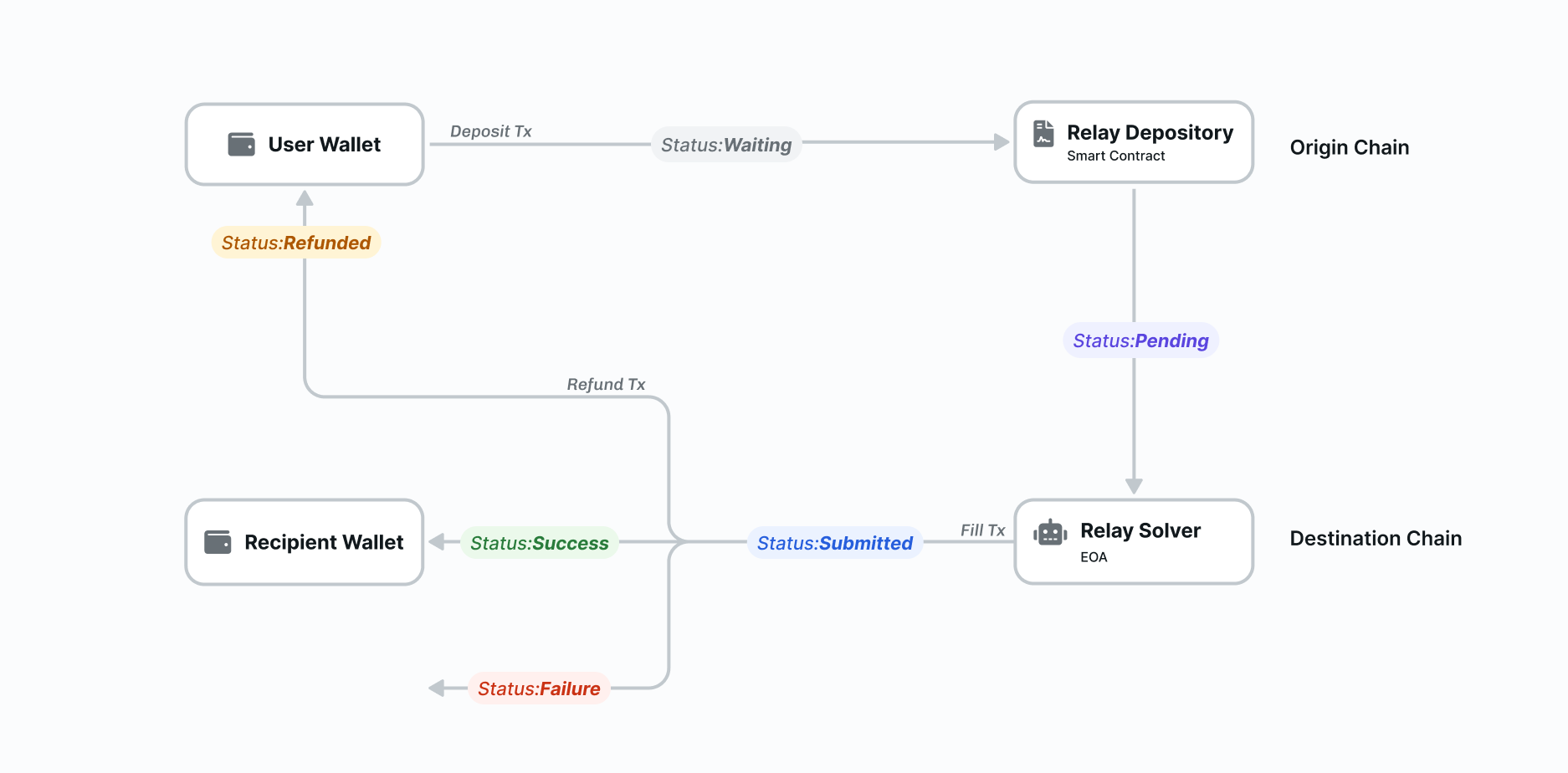

Status Lifecycle

These statuses track the application’s transaction, not the protocol’s internal settlement and withdrawal lifecycle. Refer to Get Status for the full list.

waiting: The deposit transaction has not yet been indexed. Execute the deposit steps returned in the quote.
depositing: The origin deposit is being processed after submission through the /execute API.
pending: The deposit was indexed and the request is awaiting completion of the destination fill.
success: The destination fill completed and the requested output reached the recipient.

A request can also fail or enter a refund flow if the fill cannot complete. See Refunds for the conditions and recovery paths.

Optimize

You have successfully executed your first cross-chain transaction with Relay! Check out some of the advanced features we offer to customize the experience:

App Fees: Monetize your integration by adding a fee (in bps) to every quote. Revenue is collected automatically in USDC.
Smart Accounts: Use ERC-4337 and EIP-7702 to enable Gas Sponsorship and Atomic Batching (e.g., Approve + Swap in one click).
Transaction Indexing: Handle complex settlement scenarios, like tracking complex same-chain wraps or transfers.

Try it in a Sandbox

Experiment with the Quickstart code in our interactive sandbox. You can fork or clone it to build your own project with Relay.
